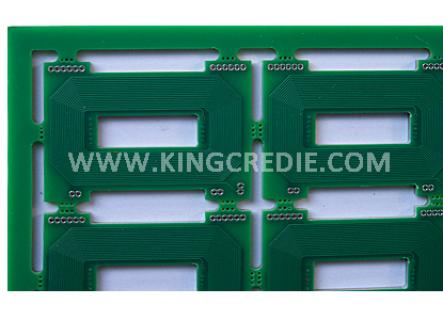

3OZ Double-Sided PCB with HASL
collection

Type:Heavy Copper Pcb

View quote information
share:

PRODUCT DESCRIPTION

Quick Details: Heavy Copper 3OZ, Coil Design, 8mil / 8mil

 Base Material

 Fr4 TG140

 Layer Counts

 2L

 Board Thickness

 1.60 mm

 Copper Thickness

 3OZ

 Min. Hole Size

 16mil (0.4mm)

 Min. Line Width/ Spacing

 8mil (0.2mm)/8mil (0.2mm)

 Solder mask Color

 Green

 Silkscreen Color

 None

 Surface Finishing

 HASL

 Min.Quantity of Order

 No MOQ

 Certificate

 UL, ISO 9001, ISO 14001

 Difficulty

 Heavy Copper + Coil Design




Processing capability

Base material: FR4/Aluminum

Copper thickness: 4 OZ~6OZ

Outline: Routing, punching, V-Cut

Soldermask: White/Black/Blue/Green/Red Oil

Surface finishing: Immersion Gold, HASL, OSP

Typical conductor width/spacing/thickness tolerance is +/-20%, although tighter tolerance is achievable.


Applications for Heavy Copper

Heavy copper can be used for a variety of purposes, including, but not limited to, high power distribution, High current applications, thermal distribution for good thermal management, planar transformers, and power convertors
