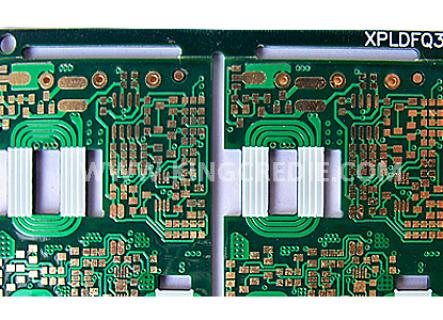

4OZ Heavy Copper 4L PCB with ENIG
collection

Type:Heavy Copper Pcb

View quote information
share:

PRODUCT DESCRIPTION

Quick DetailsTG170, 4OZ, 8mil/10mil

 Base Material

 Fr4 TG170

 Layer Counts

 4L

 Board Thickness

 2.0 mm

 Copper Thickness

 4OZ

 Min. Hole Size

 12mil (0.3mm)

 Min. Line Width/ Spacing

 8mil (0.2mm)/10mil (0.25mm)

 Solder mask Color

 Green

 Silkscreen Color

 None

 Surface Finishing

 ENIG

 Min.Quantity of Order

 No MOQ

 Certificate

 UL, ISO 9001, ISO 14001

 Difficulty

 Heavy Copper




Processing capability

Base material: FR4/Aluminum

Copper thickness: 4 OZ~6OZ

Outline: Routing, punching, V-Cut

Soldermask: White/Black/Blue/Green/Red Oil

Surface finishing: Immersion Gold, HASL, OSP

Typical conductor width/spacing/thickness tolerance is +/-20%, although tighter tolerance is achievable.


Applications for Heavy Copper

Heavy copper can be used for a variety of purposes, including, but not limited to, high power distribution, High current applications, thermal distribution for good thermal management, planar transformers, and power convertors.
