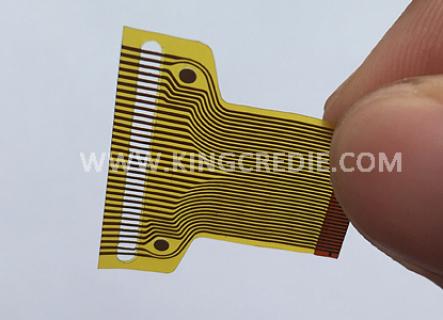

Single-Side Double Access FPC
collection

Type:Flexible Pcb

View quote information
share:

PRODUCT DESCRIPTION

 Board Thickness

 0.09mm +/-0.03

 Base Material

 0.0275mm (Coverlay)

 Copper Thickness

 1OZ

 Stiffener

 PI (0.12mm)

 Min. Line Width/ Spacing

 20mil (0.50mm)/12mil (0.30mm)

 Coverlay

 Yellow

 Silkscreen Color

 None

 Surface Finishing

 ENIG

 Min.Quantity of Order

 No MOQ

 Layer Count

 1 Layer

 Difficulty

 Single-Side Double Access FPC



Our Product

We produce various types of flex circuit boards, such as capacitive boards, module boards, soft cabling boards, battery boards, keypad boards, LED light bar boards, backlight boards and so on. At the same time to meet the diversification of product customization, support various types of sample research and development, customer demand has always been the first place, the greatest efforts to meet customer requirements.



FPC material introduction

Bare Material: PI,PET
Bare Material Thickness: .0005”(0.0125mm) to .002” (0.05mm)
Copper Foil: 1/3oz to 2oz( (ED & RA)


Processing capability

 • Flex PCB layer count: 1-6 L
 • Min Line width/spacing : 3.0/3.0mil
 • Drill to conductor: 8mil
 • Surface Finishing: ENIG, Immersion Tin, Immersion Silver, Organic coating processing,etc


Quality control

 • KingCredie follow the international standard manufacturing
 • IPC-A-600G Printed board Acceptance Criteria
 • IPC/CPCA-6013B Flex boards’ Performance specification
 • IPC-TM-650 Printed board experiment method
