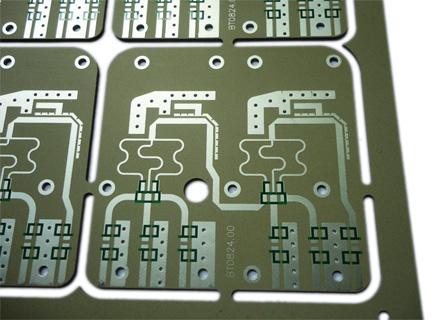

Taconic 2 Layer PCB
collection

Type:High Frequency Pcb

View quote information
share:

PRODUCT DESCRIPTION

Taconic TLX 0

 Base Material

 Taconic TLX 0

 Board Thickness

 0.5 mm

 Copper Thickness

 1OZ

 DK

 2.45

 DF

 0.0009-0.0012

 Solder mask Color

 None

 Silkscreen Color

 None

 Surface Finishing

 ENIG

 Min.Quantity of Order

 No MOQ

 Certificate

 UL, ISO 9001, ISO 14001

 Difficulty

 5mil/5mil, Special Material


Benefits:

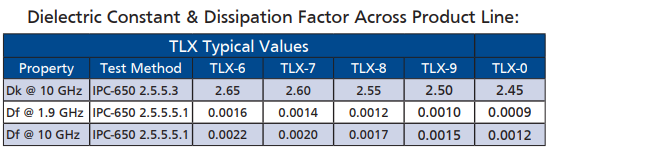

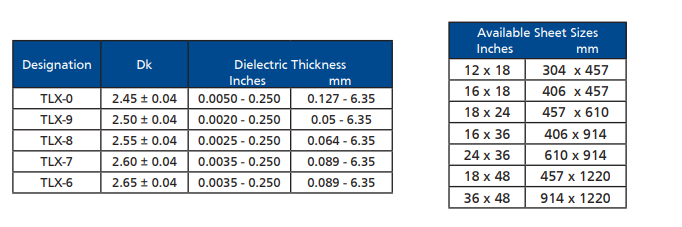

TLX offers reliability in a wide range of RF applications. This material is versatile due to its 2.45 - 2.65 DK range and available thicknesses and copper cladding. It is suitable for low layer count microwave designs.

Excellent mechanical & thermal properties

  • Low & stable DK

  • Dimensionally stable

  • Low moisture absorption

  • UL 94 V-O rating

  • Tightly controlled DK

  • Low DF

  • For low layer count microwave designs


Applications:

  • Antennas

  • Mixers, splitters, filters & combiners

  • Passive components



KingCredie follow the international standard manufacturing

  • ● IPC-4101 Specification for base materials rigid / multi-layer

  • ● IPC-600G Acceptability of Printed Boards / Class 2

  • ● IPC-6011 Generic Performance Specification for Printed Wiring Boards

  • ● IPC-6012B -Qualification and Performance Specification for Rigid Boards/class 2

  • ● IPC6013A- Qualification and Performance Specification for Flexible Printed Boards/class 2

  • ● IPC6016- Qualification and Performance Specification for High Density Interconnect(HDI) Layers or Boards/ class 2

  • ● IPC-SM-840 Qualification and Performance of permanent polymer coatings

  • ● MIL-PFR-55110 Military Performance and Specifications-Tucson

  • ● IPC-6018 Microwave End Product Board Inspection and Test-Tucson

  • ● IPC-TM-650 Test methods manual.
