6 Layer HDI PCB With Impedance Control
collection

Type:Hdi & Buried Blind

View quote information
share:

PRODUCT DESCRIPTION

Quick Details:3mil/3mil, HDI , Impedance control, Half Holes

 Base Material

 Fr4 TG170

 Board Thickness

 1.0 mm

 Copper Thickness

 1OZ(outer) , 0.5OZ(inter)

 Min. Hole Size

 4mil (0.1mm)

 Min. Line Width/ Spacing

 3mil (0.076mm)/3mil (0.076mm)

 Solder mask Color

 Blue

 Silkscreen Color

 White

 Surface Finishing

 Immersion Gold

 Min.Quantity of Order

 No MOQ

 Certificate

 UL, ISO 9001, ISO 14001

 HDI Step

 1+4+1

 Impedance control

 50 ohms, 100 ohms

 Difficulty

 1 Step HDI  +  Impedance control + Half Holes

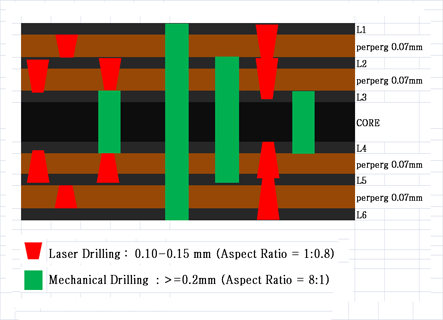

Stack-Up




Application


For DVC, For Camera Module,  For Cellular Phone, For Wrist Watch,etc
