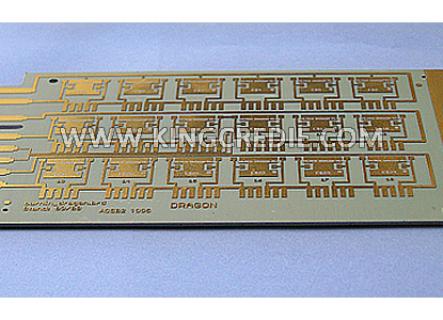

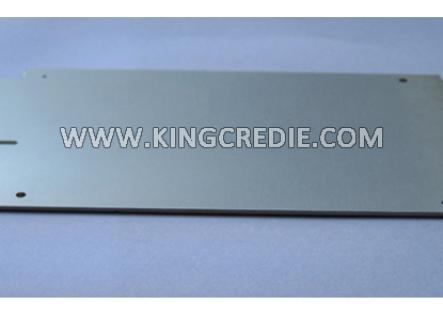

Single Side Aluminum Based PCB
collection

Type:Metal Core Pcb

View quote information
share:

PRODUCT DESCRIPTION

Quick Details3.0W/m.k,   led aluminum pcb, High Thermal Conductivity

 Base Material

 Aluminum-based PCB

 Thermal conductivity

 1.0W/m.k

 Layer Counts

 1L+Al

 Board Thickness

 1.0mm

 Copper Thickness

 1OZ

 Min. Hole Size

 40mil (1.0mm)

 Min. Line Width/ Spacing

 12mil (0.3mm)/10mil (0.25mm)

 Solder mask Color

 None

 Silkscreen Color

 None

 Surface Finishing

ENIG

 Min.Quantity of Order

 No MOQ

 Certificate

 UL, ISO 9001, ISO 14001

 Difficulty

 Metal-substrate PCB,  Thermal conductivity 1.0W/m.k




Processing capability

MCPCB Types: Aluminum PCB, Copper PCB, Iron PCB

Layer count: 1 – 12 L

Board thickness: 0.5-7.0mm

Size: max:610*610 ,min:5*5mm

Thermal conductivity: 1-3W/m.k; (Customizable 3-12W/M.K)

Copper thickness: 1-6OZ

Surface Finishing: HAL LF, ENIG, ENEPIG, Immersion Tin, etc




Application

Hybrid/electric motor control applications

LED applications

Photovoltaic

Power regulator in automobiles

Audio amplifiers

Semiconductor thermal insulation board
